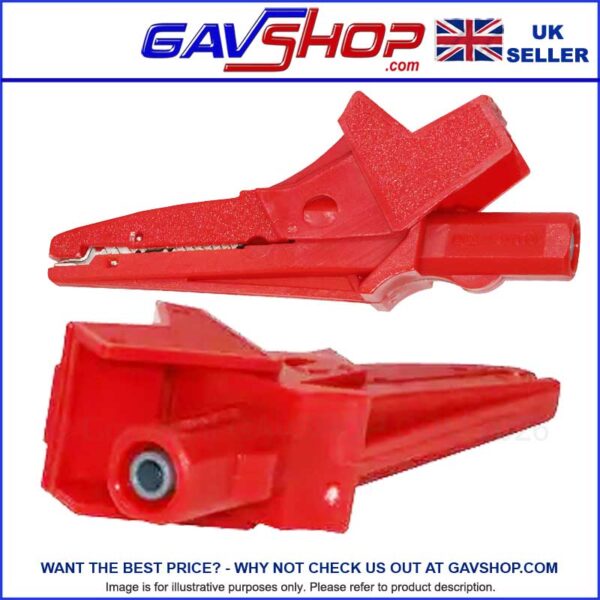

20A 4mm Alligator Clip
20A 4mm Alligator Clip for Testers by Multicomp Pro (formely TENMA)
The alligator clip with 4mm banana (female) jack (socket). It is used for general purpose electric testing by grasping conductive parts. It features electrical safety according to EN/IEC 61010-031:2008. 1000V CAT II/1000V CAT III/600V CAT IV, reinforced insulation, 20A (at +40°C).

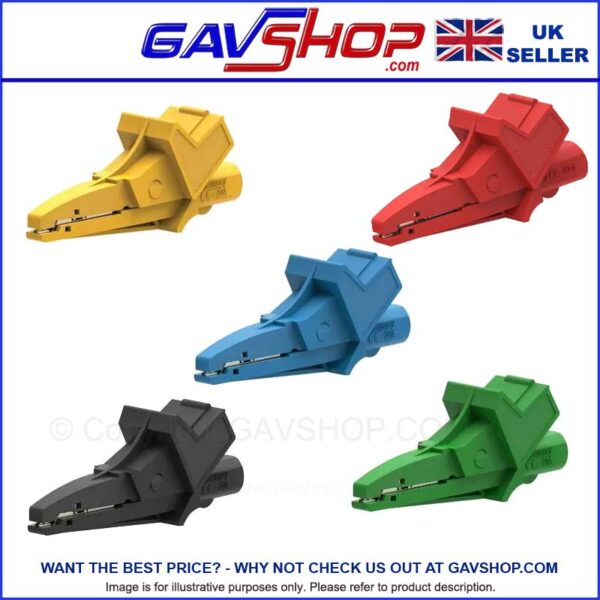

They are available in several colours being Red, Yellow, Black, Blue and Green
Insulated crocodile clip which meets IEC1010 safety standards to 1000V CATIII.
The insulation piercing feature adds versatility to usage.
For use with 4mm, insulated test plugs.
- Optimum jaw design to clench well a lot of various items as bar, wire, screw, PCB pin etc
- IP2X touch proof protection on jaws when closed and 4mm banana female to prevent accidental contact
- Overall length is 91mm
- Overall width is 23mm
- Maximum jaw opening is 22mm
- Operating temperature range from -20°C to +80°C
- Clip Colours: Red, Yellow, Black, Blue, Green
- Maximum Voltage: 1000v
- Sold Each Clip
- GAVSHOP LOC: STU001
