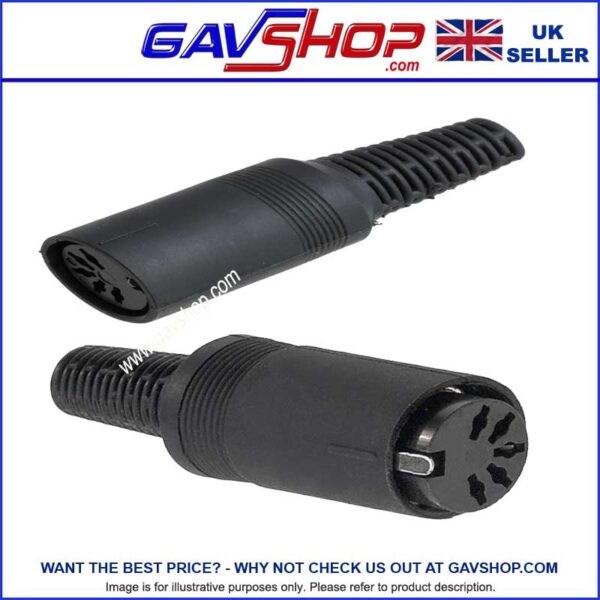

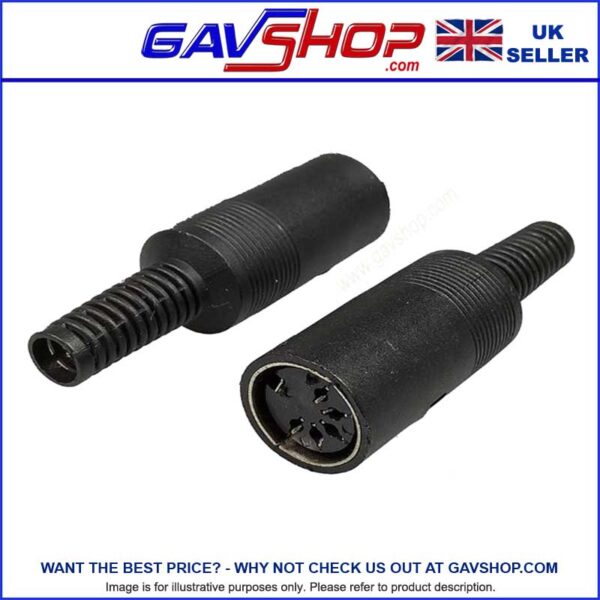

The 5-pin DIN audio socket at 180 degrees ideal for creating extension cables for MIDI
Item sold as each socket.
This specific configuration allows for connections in various audio equipment, ensuring compatibility and proper signal transmission.
For more information on selecting the correct din plugs and sockets (CLICK HERE)
For the vast majority of users searching for din 5 connector pinout, this is the one most often used the context is MIDI (Musical Instrument Digital Interface).
The MIDI Association strictly defines this standard to ensure compatibility across all devices.
| Pin Number | Function (MIDI) | Wire Colour (Typical |
| Pin 1 | Not Connected (NC) | N/A |
| Pin 2 | Shield / Ground | Bare/Black |
| Pin 3 | Not Connected (NC) | N/A |
| Pin 4 | Source (Current +) | White/Red |
| Pin 5 | Sink (Current -) | Red/Black |
