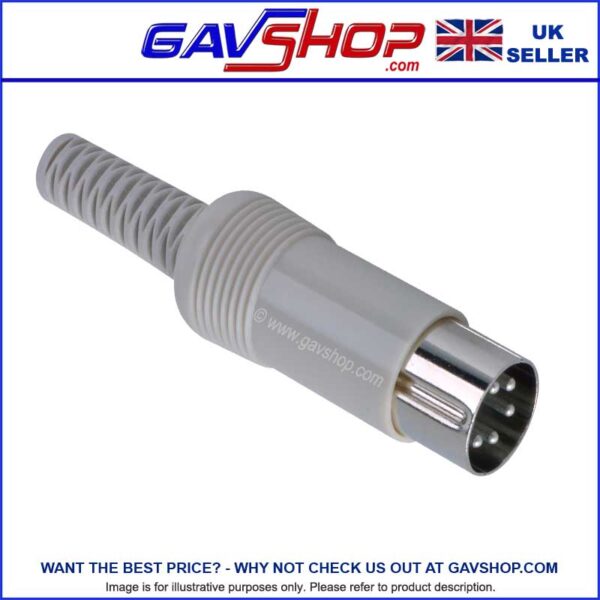

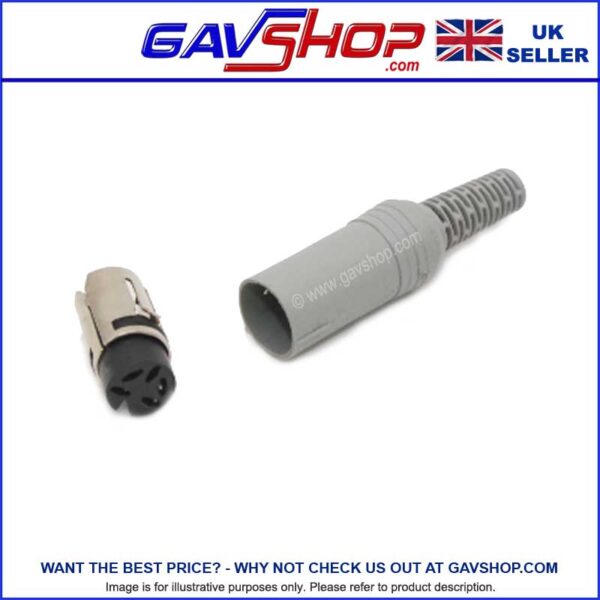

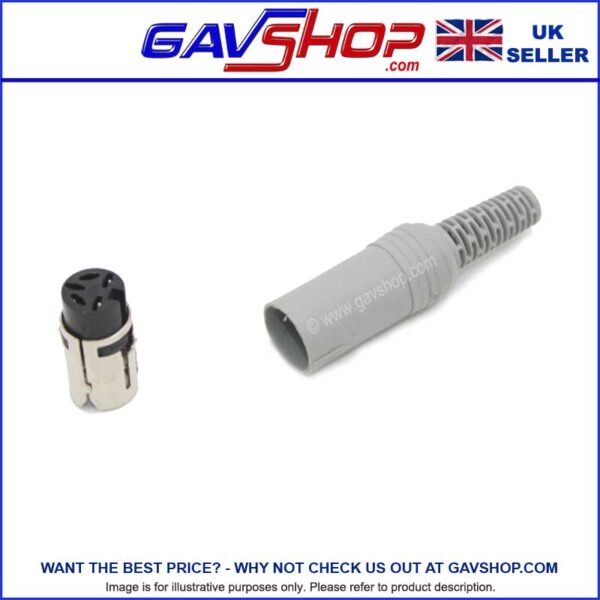

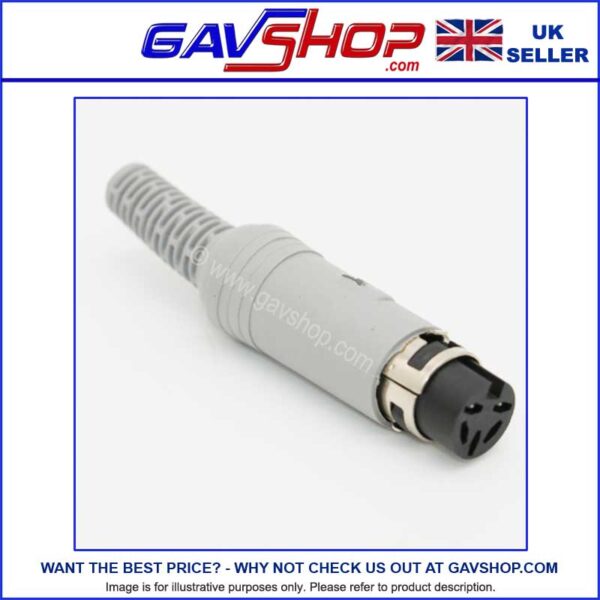

The 5-pin DIN audio socket at 240 degrees ideal for creating extension cables
A 240° 5-pin DIN socket and plug are specialized circular connectors featuring five pins arranged over a 240° arc.
Common Use Applications
The 240° DIN connectors are primarily used in the following areas:
- Analog Audio Connections: They facilitate connections between audio equipment, such as amplifiers and speakers.
- MIDI Interfaces: These connectors are widely recognized in music production for connecting MIDI devices, allowing communication between synthesizers, keyboards, and computers.
- Industrial Control Signals: They are also utilized in some industrial applications for control signals, providing reliable connections in machinery and automation systems.
Key Features
Item sold as each socket.
This specific configuration allows for connections in various audio equipment, ensuring compatibility and proper signal transmission.
For more information on selecting the correct din plugs and sockets (CLICK HERE)
The MIDI Association strictly defines this standard to ensure compatibility across all devices.
| Pin Number | Function (MIDI) | Wire Colour (Typical |
| Pin 1 | Not Connected (NC) | N/A |
| Pin 2 | Shield / Ground | Bare/Black |
| Pin 3 | Not Connected (NC) | N/A |
| Pin 4 | Source (Current +) | White/Red |
| Pin 5 | Sink (Current -) | Red/Black |
