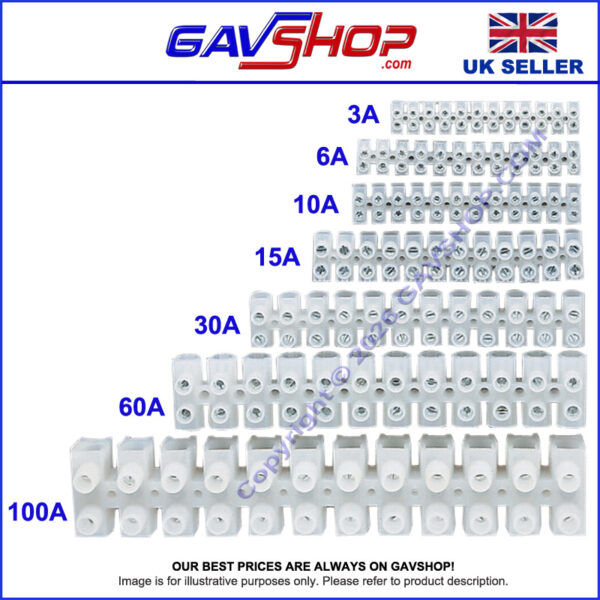

Electrical Screw Terminal Block 12 Way Strip 3A, 6A, 10A, 15A, 30A, 60A, 100A
Electrical Screw Terminal Block 12 Way Strip is designed for secure electrical connections, accommodating various current ratings including 3A, 6A, 10A, 15A, 30A, 60A and 100A. They are a durable construction with brass contacts and is suitable for flexible installation in multiple applications.
Current Ratings
The electrical screw terminal block supports the following current ratings:
| Current Rating | Maximum Cable Size |
|---|---|
| 3A | Up to 2.5mm² |
| 6A | Up to 2.5mm² |
| 10A | Up to 2.5mm² |
| 15A | Up to 4.0mm² |
| 30A | Up to 5.5mm² |
| 60A | Up to 6.0mm² |
| 100A | Up to 6.5.0mm² |
Information
| Product Code: | F510 | F511 | F512 | F513 | F514 | F515 | F516 |
|---|---|---|---|---|---|---|---|
| Amps | 3A | 6A | 10A | 15A | 30A | 60A | 100A |
| Colour | White | White | White | White | White | White | White |
| Location | B035 | B036 | B037 | B038 | B039 | B040 | B041 |
| Product Dimensions (mm) | 12.5x15x95 | 105x19x15 | 15x20x125 | 17×12.2×130 | 20x25x163 | 25x30x190 | 30x38x225 |
| Net weight (kg) | 0.15 | 0.2 | 0.183 | 0.04 | 0.055 | 0.095 | 0.195 |
