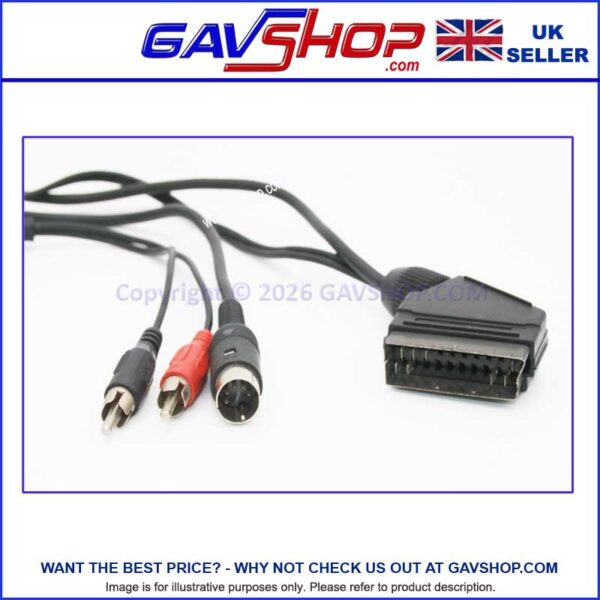

Scart to 5-Pin Din and 2x RCA Phono Leads Retro Camcorder, Video and Gaming to TV (Used or New Leads Fully Tested)
This old scart lead is very rare to find. The lead can be used for input or output.
The Scart to 5-Pin Din and 2x RCA Phono Leads wiring is as follows below.
Phono RCA Plugs
Red Phono Pin to Scart Pin 19 (Composite Video Output)
Red Phono Ground to Scart Pin 17 (Video Ground)
Black Phono Pin to Scart Pin 20 (Composite Video Input)
Black Phono Ground to Scart Pin 17 (Video Ground)
5 Pin Din Plug 180 degree type
Din Pin 1 to Scart Pin 2 (Audio Input Right Channel)
Din Pin 2 to Scart Pin 4 (Audio Ground)
Din Pin 3 to Scart Pin 1 (Audio Output Right Channel)
Din Pin 4 to Scart Pin 6 (Audio Input Left Channel)
Din Pin 5 to Scart Pin 3 (Audio Output Left Channel)
*Whilst this lead is used and very old our company can make you new ones. (see options)
GAVSHOP CODE: GAVVCL6
GAVSHOP LOC: STU007
