100V or 4 to 16 Ohm Mixer-Amplifier with DAB+, BT, USB/SD Available in Four Versions 60w, 120w, 240w, 360w, 480w

GAVSHOP CODES : 953.225UK (60w) - 953.224UK (120W) - 953.225UK (240w) - 953.226UK  (360w) - 953.227UK - (480w)

GAVSHOP LOC: UPS-RACK4A

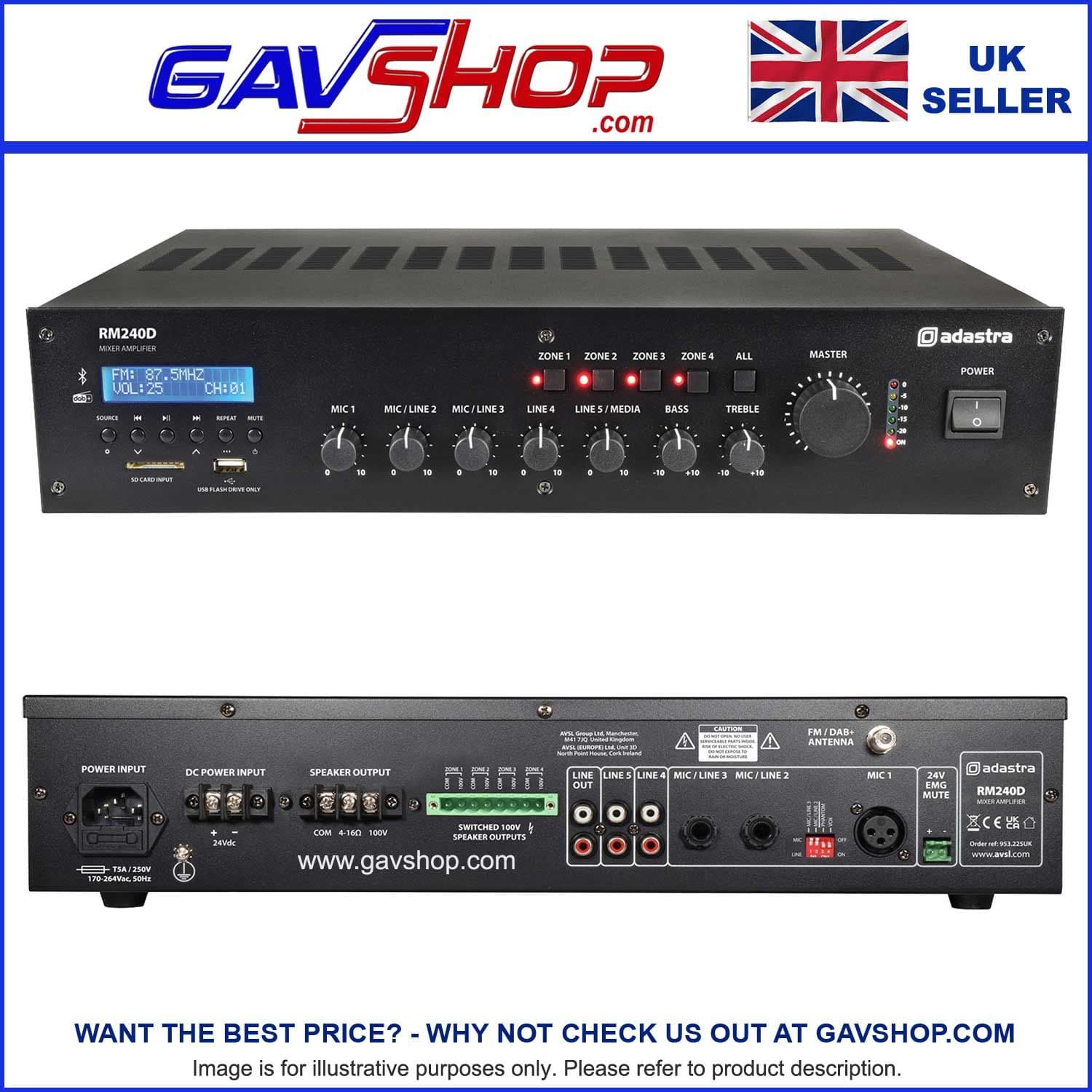

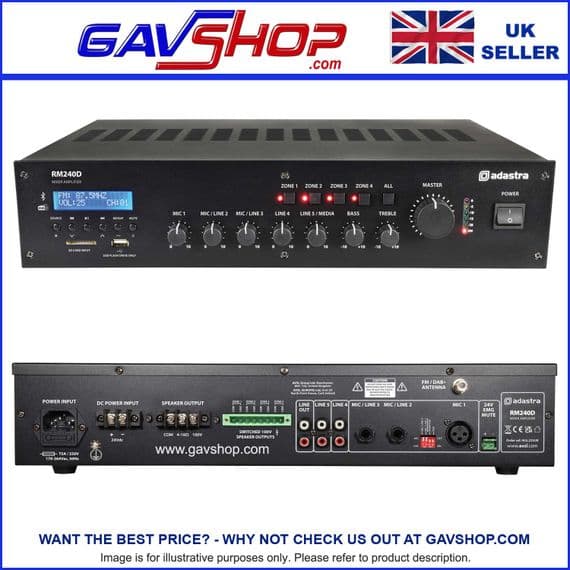

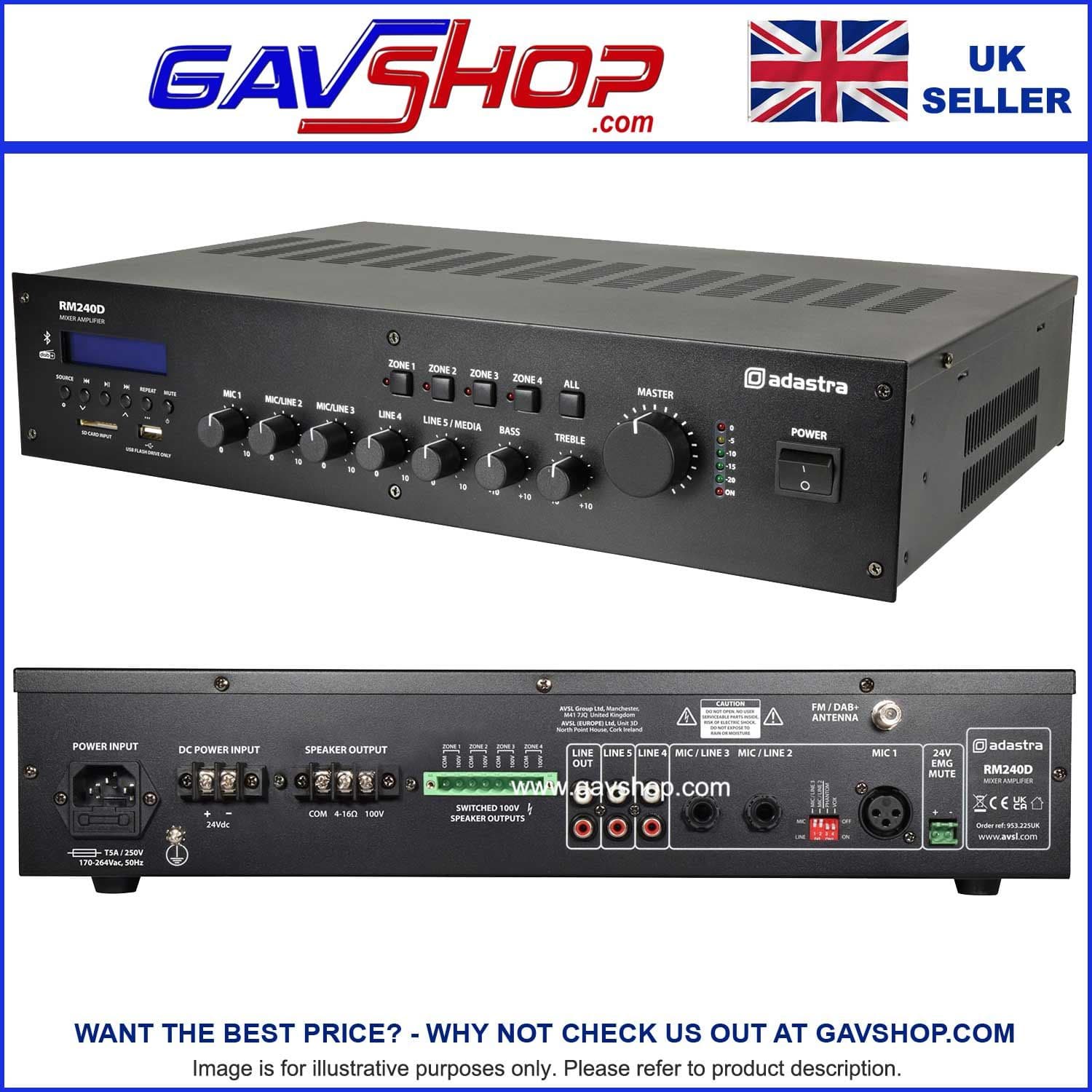

These 5-channel 19" rack-mountable mixer-amplifiers are tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminals are via 4 switchable zones with a separate "always on" output for priority alert speakers.

• Power supply170-264Vac, 50Hz (IEC)
• DC power24Vdc (screw terminals)
• InputsMic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced)-53dBV
• Input impedance : mic 15k Ohms
• Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
• Input impedance : inputs 2-51k Ohms
• Line outputRCA
• Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM

• Bluetooth version5.0
• ControlsMic1, mic/line2+3, line4+5, bass, treble, master volume
• Equaliser : bass100Hz ±10dB
• Equaliser : treble10kHz ±10dB
• Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
• Phantom power+20V (mic 1 XLR, switchable)
• Audio sourceDAB+/FM tuner, USB/SD player, Bluetooth receiver
• Emergency control24V contacts - mute all except Mic.1 when triggered
• THD<1.0%
