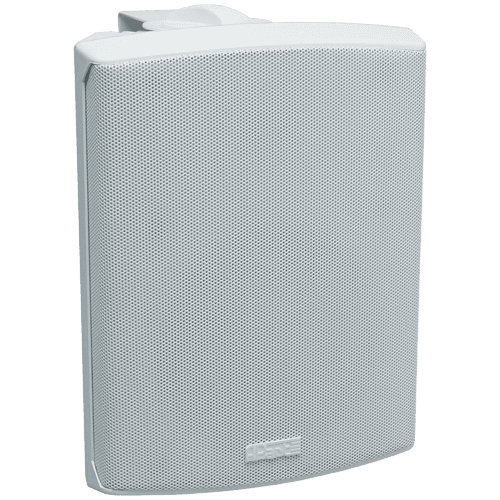

APART SDQ5PIR-W ACTIVE INSTALLATION SPEAKER SYSTEM PROFESSIONAL
LOUDSPEAKERS SET- SDQ5PIR-W
The SDQ5 series from Apart are active stereo loudspeaker sets intended for installation in conference centres, board rooms, school classrooms, conference rooms, shops & restaurants etc. The APART SDQ5 loudspeakers are magnetically shielded making them well suited for use with display screens, smart boards and projectors.
A-PART SDQ5 speaker stereo sets comprise of 2 x 30W RMS 2-way loudspeakers, one active and one passive cabinet. All systems are supplied complete with mounting brackets and 3m power cord (IEC).
More About The Professional Apart SDQ5P Stereo Loudspeaker Sets
A comprehensive choice of line level inputs is offered on the rear of the active cabinet. Balanced (R/L) via Euroblock connector, unbalanced inputs via RCA phono sockets and 3.5mm stereo mini-jack socket for the connection of MP3 players and computers.
A 'Mode' switch determines whether the system functions as a stereo pair or dual mono set-up. During mono operation the left channel input is duplicated and fed to the passive loudspeaker. Output to the passive slave loudspeaker is via Euroblock connectors. Rotary control knobs provide for manual adjustment of treble, bass and output level, enabling the installer to tailor the output to suit the application. Coloured LEDs indicate powering and clip status of both left and right loudspeakers.
The APart SDQ5Pir powered loudspeaker set is a versatile and very compact, easy to use sound system. One unit contains a stereo amplifier loudspeaker with a 5.25” woofer, a HF unit. One output is fed to a second linkable passive loudspeaker.
SDQ5PIR can be remote controlled via the rear panel controls, the included infrared remote control, RS232 serial port or an optional wall mounted control panel with or without local input. The auto power off function switches off the power amplifier when no audio signal is present.
Further benefits are: adjustable maximum level, dual inputs: (unbalanced on mini-jack and balanced on euroblock) + additional input via the optional wall control unit. All inputs can be gain adjusted, used individually or mixed together (the optional wall control panel local input can not be mixed with the A or B or A+B)
The magnetic shielding makes this speaker set ideal for AV applications.
• Speaker type: 2 way bass reflex, active
• Input impedance: mini jack input A 5 kOhm
• Input sensitivity: mini jack input A 500 mV
• Input impedance: balanced input B 22 kOhm
• Input sensitivity: balanced input B 500 mV
• Tone control bass: +- 14 dB @ 100 Hz in 2 dB steps
• Tone control treble: +- 14 dB @ 10 kHz in 2 dB steps
• Balance control: +- 31 steps ; 1.25 dB per step
• Input gain adjustment: 0 to 3 ; + 3.75 dB per step
• Output power: 2 x 30 watts RMS
• Frequency range: 45 - 20000 Hz
• THD: <0.07%
• S/N ratio: >90 dB
• Power supply: 230 VAC / 80 VA max
• Fuse rating: 1 AT/250V
• Dimensions: H x W x D (mm) 252 x 182 x 170
• Net weight: 2.85 kg (active) ; 1.75 kg (slave)
• Shipping weight: 6.2 kg (1 set)
• Shipping dimensions: 270 x 210 x 440
• Accessories supplied: Power cord, bracket, manual, infrared remote control unit, connection wire
• Remote control unit battery type lithium CR2025 3V
• Operating temperature: -10 to +40° C
• Relative humidity: 10 to 90% non condensing
Our Order Code: SDQ5PIR-W
Apart SDQ5PIR Stereo Loudspeaker Set
Similar to the SDQ5P, the SDQ5PIRcan be controlled from the supplied infrared remote control, RS232 serial commands or optional Apart wall control panels (ACP, ACPL or ACPR). Control panels are connected via Ethernet RJ45 socket (max.100m CAT5 cabling can be used). Apart control panels add remote level control, power switching and remote mic/line inputs which can be particularly useful in classrooms & boardrooms.
Balanced (R/L) line level input is offered via Euroblock connector and an unbalanced 3.5mm stereo mini-jack socket provides for the connection of MP3 players and computers. Note: the SDQ5PIR does not offer RCA phono input. Manual adjustment of treble and bass is provided along with output level control.
Ordering Note: This SDQ5PIR-W set are sold as a set of one active and one passive loudspeaker.
Optional Extras:
Apart ACP Wired Remote Volume Control - For SDQ5PIR
The ACP is a wired remote control for use with the Apart SDQ5PIR loudspeaker set. It can be used to control the power status of the SDQ5PIR (on/off), adjust the output level or mute the system. An LED indicates the power status of the loudspeaker set. Connection is via Ethernet RJ45 socket. Brushed aluminium finish.
Two back-boxes are offered, the E-MODON surface mount and E-MODIN flush box.
Apart ACPL Wired Remote Volume Control - For SDQ5PIR - With mic/line inputs
The ACPL is similar to the ACP control panel but includes the addition of two remote inputs. A balanced mic input via 6.35mm socket for connection of dynamic microphones and, an unbalanced line level input via 3.5mm stereo jack socket for MP3 players and computers. An input switch selects which of the two remote inputs are used.

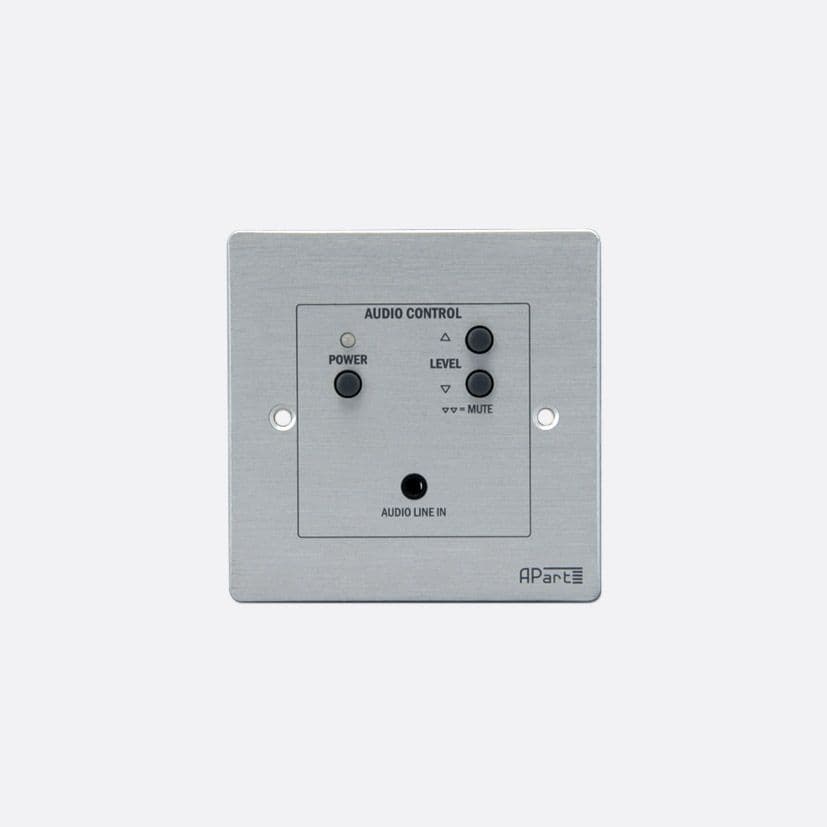

Apart ACPR Wired Remote Volume Control - For SDQ5PIR - With line inputs
Similar to the ACP control panel but includes the addition of two unbalanced line level inputs, one via 3.5mm stereo jack socket for mobile devices, MP3 players and computers and, one rear mounted via Euroblock connector. The hardwired rear input may be useful in a hotel for example, taking an audio output from a DVD player or TV. The front panel line input takes priority. Inserting a jack will automatically disable the rear input.
The SDQ5PIR-REM is an infrared remote control for the successful APart SDQ5P speaker set. This wireless remote control is especially handy as the speaker set’s controls are on the back of the active speaker, and both speakers are mostly wall mounted, often high in a corner. The IR receiver eye is in the front grille of the active speaker.
