4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N
4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N
4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N
4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N

Product Description

4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N (Used)

The Kramer VP-200N, VP-300N, & VP-400N are high-performance distribution amplifiers for computer graphics video signals with resolutions ranging from VGA through to UXGA and higher. They take one input, provides correct buffering and isolation, and distribute the signal to two, three or four identical outputs.

FEATURES:
  • High Bandwidth - 400MHz (−3dB).
  • HDTV Compatible.
  • ID Bit Control.
  • Advanced Sync Processing - Ensures compatibility with a wide range of computers.
  • Selectable Sync Input Impedance - 75Ω (video), 510Ω (Graphics/TTL).
  • 3ft 15-pin HD Cable Included.
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
TECHNICAL SPECIFICATIONS:
  • INPUT: 1 analog red, green, blue signals, 0.7Vpp/75Ω, H & V sync, TTL level, on 15−pin HD (F) connectors.
  • OUTPUT: 2/3/4 analog red, green, blue signals, 0.7Vpp/75Ω H & V sync, TTL level, on  15−pin HD (F) connectors.
  • MAX. OUTPUT LEVEL: 1.8Vpp.
  • BANDWIDTH (-3DB): 400MHz.
  • DIFF. GAIN: 0.03%.
  • DIFF. PHASE: 0.07Deg.
  • K-FACTOR: <0.05%.
  • S/N RATIO: 72dB.

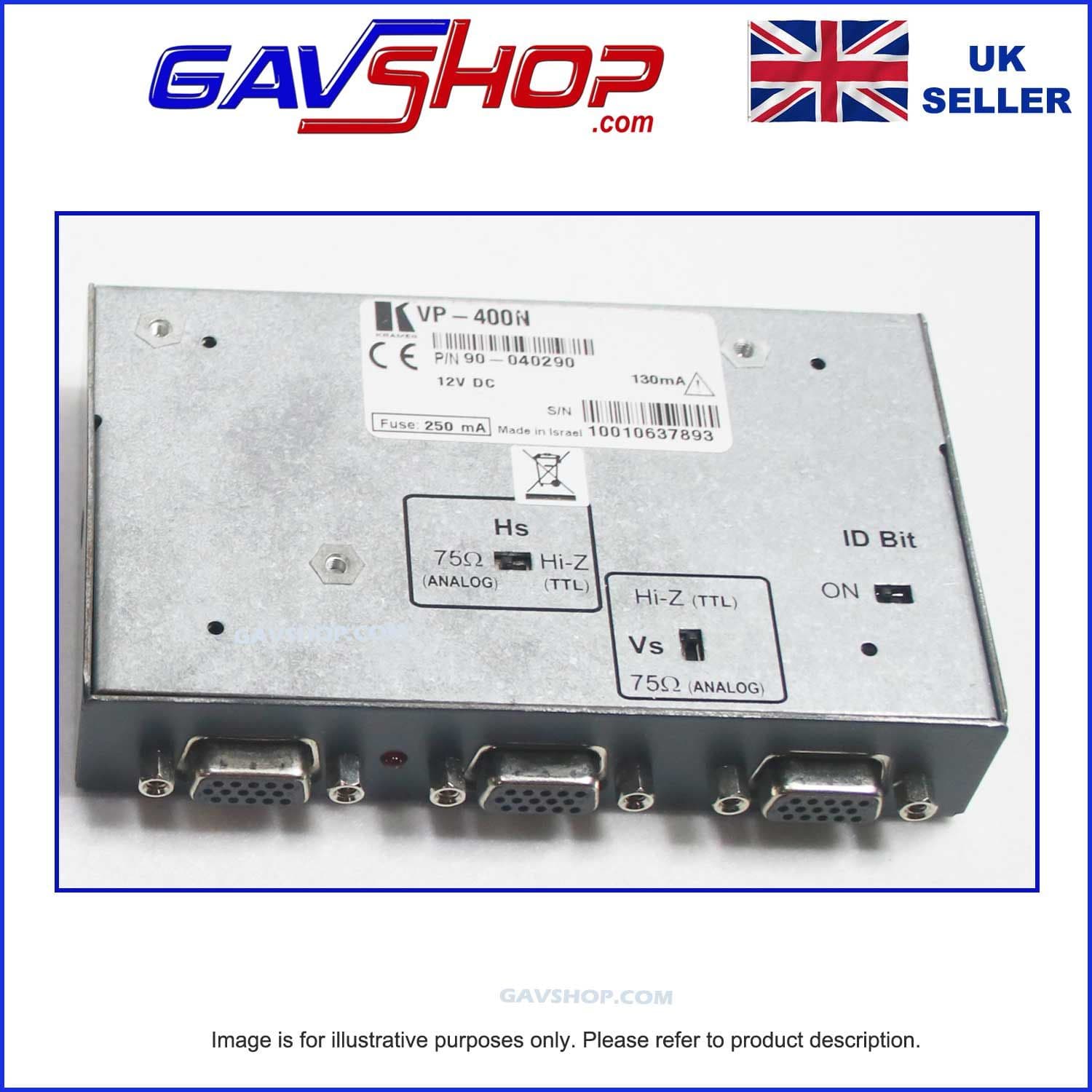

  • CONTROLS: Pair of switches for Hs (Horizontal Sync) and Vs (Vertical Sync) on the underside; ID Bit switch on the underside.
  • COUPLING: DC.
  • POWER CONSUMPTION: 12V DC, 95mA (Supplied)

Specifications

Product Code
KRA01-VP-400N

Delivery & Returns

4 Way High Res XGA VGA / S-VGA Distribution Amplifier Kramer VP-400N

Item in Stock

Product Code KRA01-VP-400N

The Kramer VP-200N, VP-300N, & VP-400N are high-performance distribution amplifiers for computer graphics video signals with resolutions ranging from VGA through to UXGA and higher.
