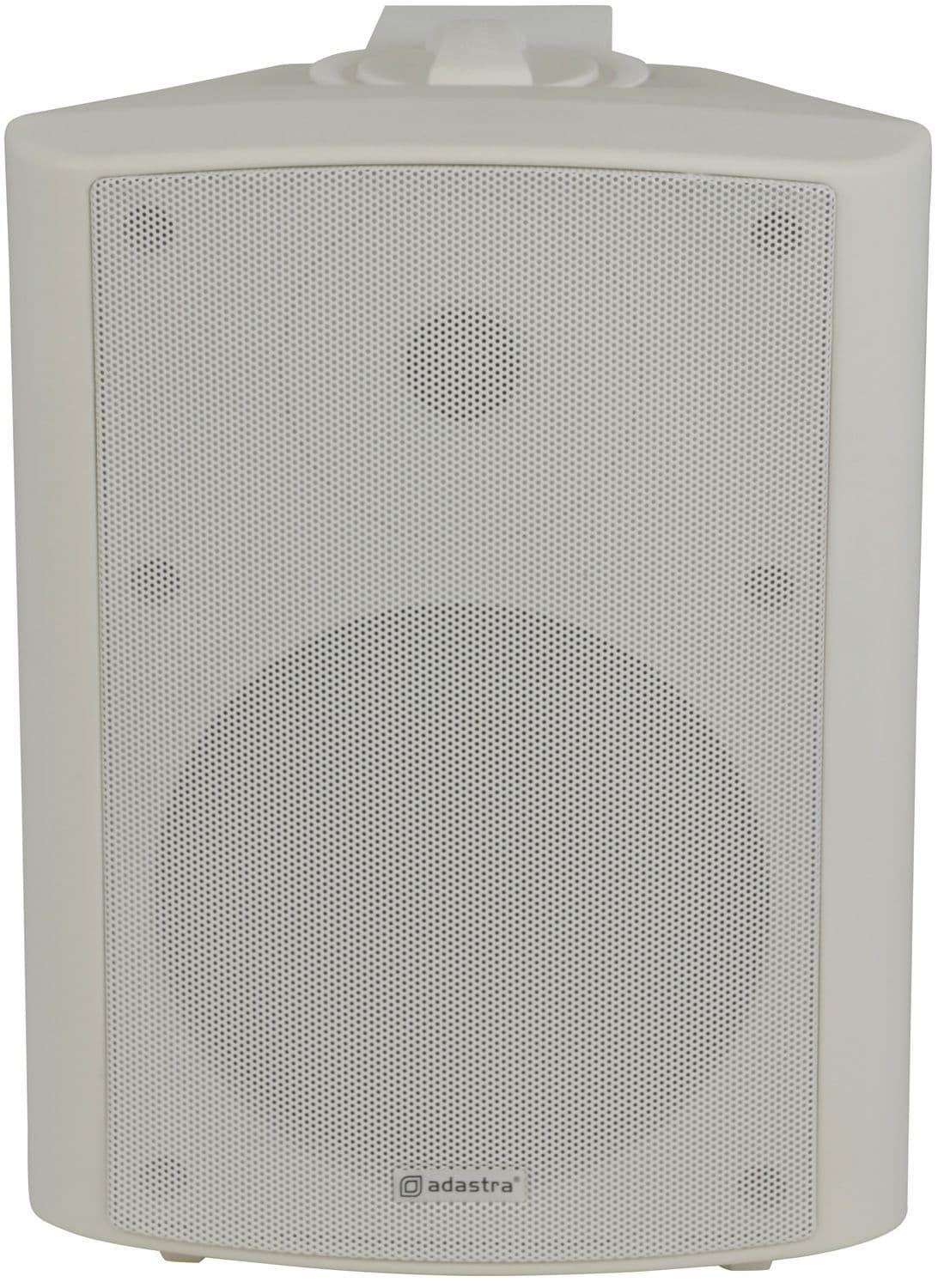

Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners or angled for directional coverage. Main drivers have high quality coated paper cones for full-sounding low and mid-range frequencies, ideal for music playback and clear voice announcements.

Rotary selector switch for 100V line tappings or 8 Ohms operation
2 way speaker system with crossover network
Wall mounting bracket supplied
Alternative M6 threaded mounting points
Spring terminal connection
Supplied single speaker
Connection Spring terminals

Versions

	952.710UK	952.711UK	952.712UK	952.713UK	952.714UK	952.715UK	952.716UK	952.717UK
Model	BC3V-W	BC3V-B	BC4V-W	BC4V-B	BC5V-W	BC5V-B	BC6V-W	BC6V-B
Colour	White	Black	White	Black	White	Black	White	Black
Woofer	75mmØ (3'') reinforced paper cone	75mmØ (3'') reinforced paper cone	100mmØ (4'') reinforced paper cone	100mmØ (4'') reinforced paper cone	130mmØ (5.25'') reinforced paper cone	130mmØ (5.25'') reinforced paper cone	165mmØ (6.5'') reinforced paper cone	165mmØ (6.5'') reinforced paper cone
Tweeter	12mm (0.5'') polymer HF driver	12mm (0.5'') polymer HF driver	25mm (1'') balanced dome	25mm (1'') balanced dome	25mm (1'') balanced dome	25mm (1'') balanced dome	25mm (1'') balanced dome	25mm (1'') balanced dome
Frequency response	120Hz - 20kHz	120Hz - 20kHz	110Hz - 20kHz	110Hz - 20kHz	100Hz - 20kHz	100Hz - 20kHz	90Hz - 20kHz	90Hz - 20kHz
Power max. : 8 Ohms	60W	60W	70W	70W	90W	90W	120W	120W
Power rms : 8 Ohms	30W	30W	35W	35W	45W	45W	60W	60W
SPL @ 1W/1m	87dB	87dB	88dB	88dB	89dB	89dB	89dB	89dB
Tappings	6W, 3W, 1.5W + 8 Ohms	6W, 3W, 1.5W + 8 Ohms	20W, 10W, 5W, 2.5W + 8 Ohms	20W, 10W, 5W, 2.5W + 8 Ohms	30W, 20W, 10W, 5W + 8 Ohms	30W, 20W, 10W, 5W + 8 Ohms	40W, 20W, 10W, 5W + 8 Ohms	40W, 20W, 10W, 5W + 8 Ohms
Impedance : 100V	1.6k, 3.3k, 6.6k Ohms	1.6k, 3.3k, 6.6k Ohms	500, 1k, 2k, 4k Ohms	500, 1k, 2k, 4k Ohms	333, 500, 1k, 2k Ohms	333, 500, 1k, 2k Ohms	250, 500, 1k, 2k Ohms	250, 500, 1k, 2k Ohms
Dimensions	106 x 153 x 98mm	106 x 153 x 98mm	150 x 195 x 150mm	150 x 195 x 150mm	180 x 235 x 175mm	180 x 235 x 175mm	220 x 280 x 210mm	220 x 280 x 210mm
Weight	900g	900g	1.63kg	1.63kg	2.38kg	2.38kg	3.08kg	3.08kg

Gregory Audio Visual over the past four years have supplied and installed well over 4,000 of these speakers to major company PA installations with not one failure. For more details on installations by our professional team please email or call us on 01254 674444.

Specifications

Product Code

952.711UK

Delivery & Returns

Adastra 100V Line or 8 ohm Indoor Wall Mount ABS Speakers Industry Standard

Item in Stock

Product Code 952.711UK

Wall or ceiling surface mounting via the adjustable steel bracket.

Speaker Version

BC3V-W 100V 3" white speaker BC3V-B 100V 3" black speaker BC4V-W 100V 4" white speaker BC4V-B 100V 4" black speaker BC5V-W 100V 5.25" white BC5V-B 100V 5.25" black BC6V-W 100V 6.5" White BC6V-B 100V 6.5" Black
