Product Description

Citronic CASA Active Sub Cabinets Speakers in sizes 10" 12" 15" 18"

CONTACT US FOR DISCOUNTS IF YOU ARE BUYING MORE THAN ONE UNIT

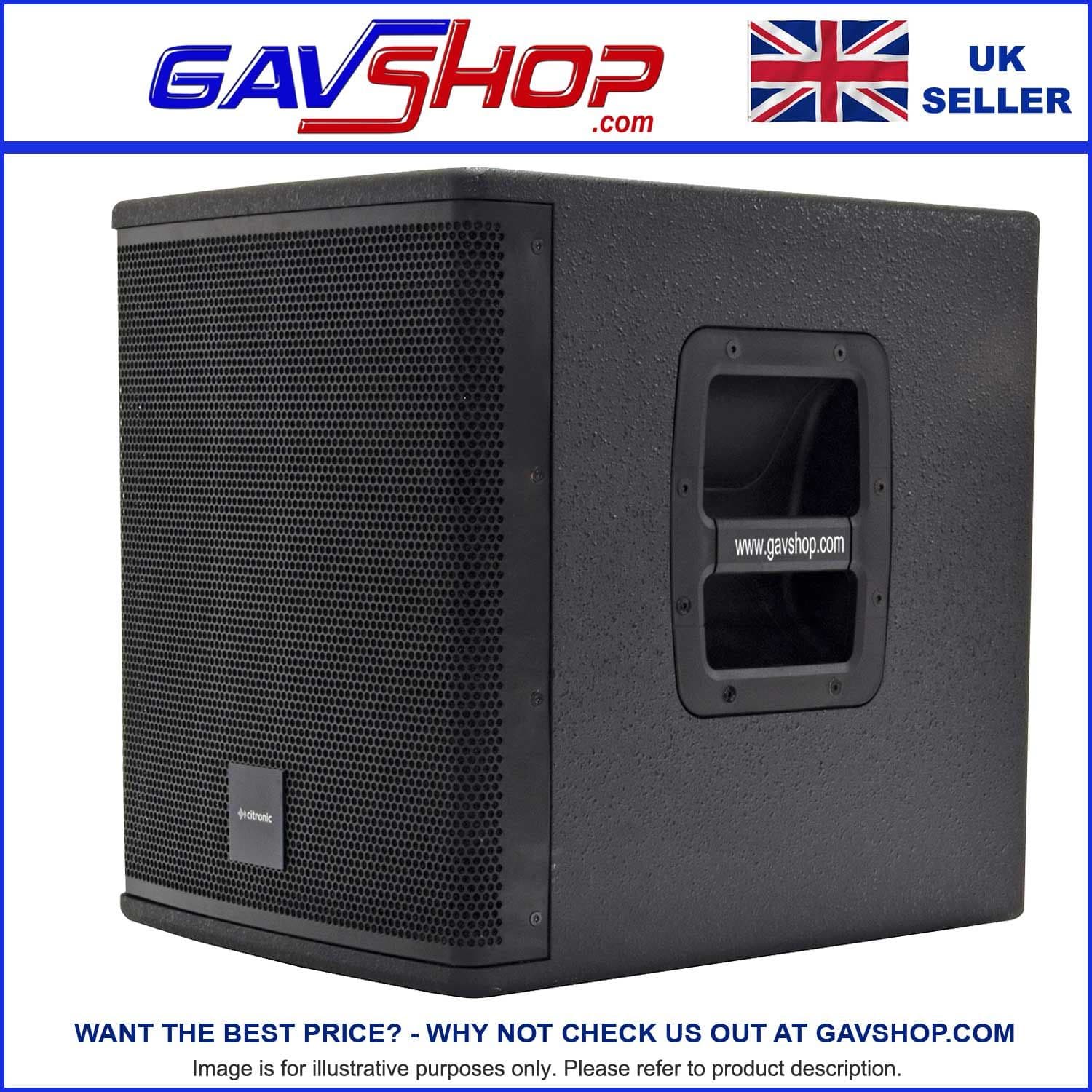

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish
  • 2 x side carry handles

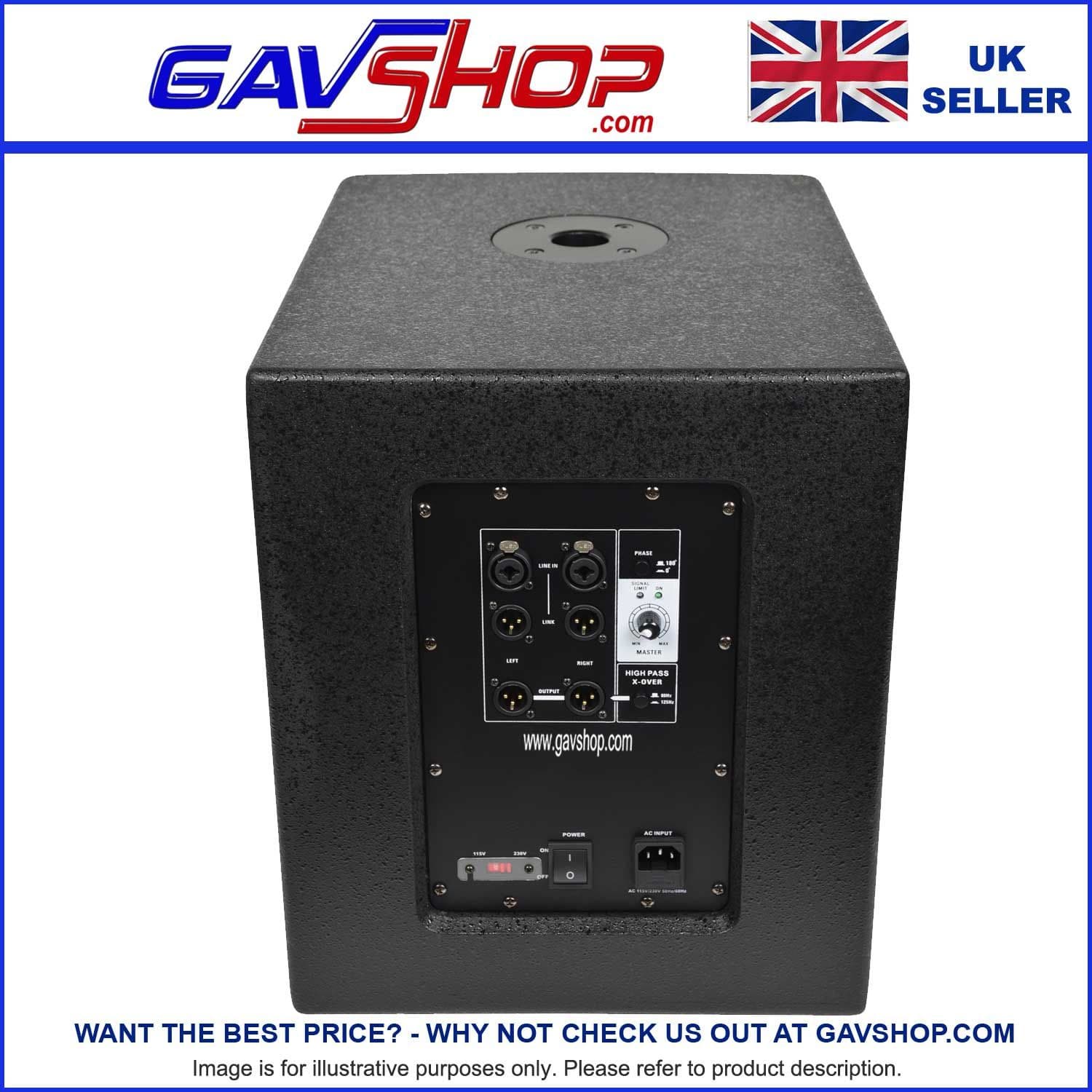

  • 35mm pole mount socket
  • Power supply230Vac, 50Hz (IEC)
  • Construction15mm MDF with durable texture paint finish
  • Hardware2 x side carry handles + 35mm pole mount socket
  • Amplifier : constructionClass D

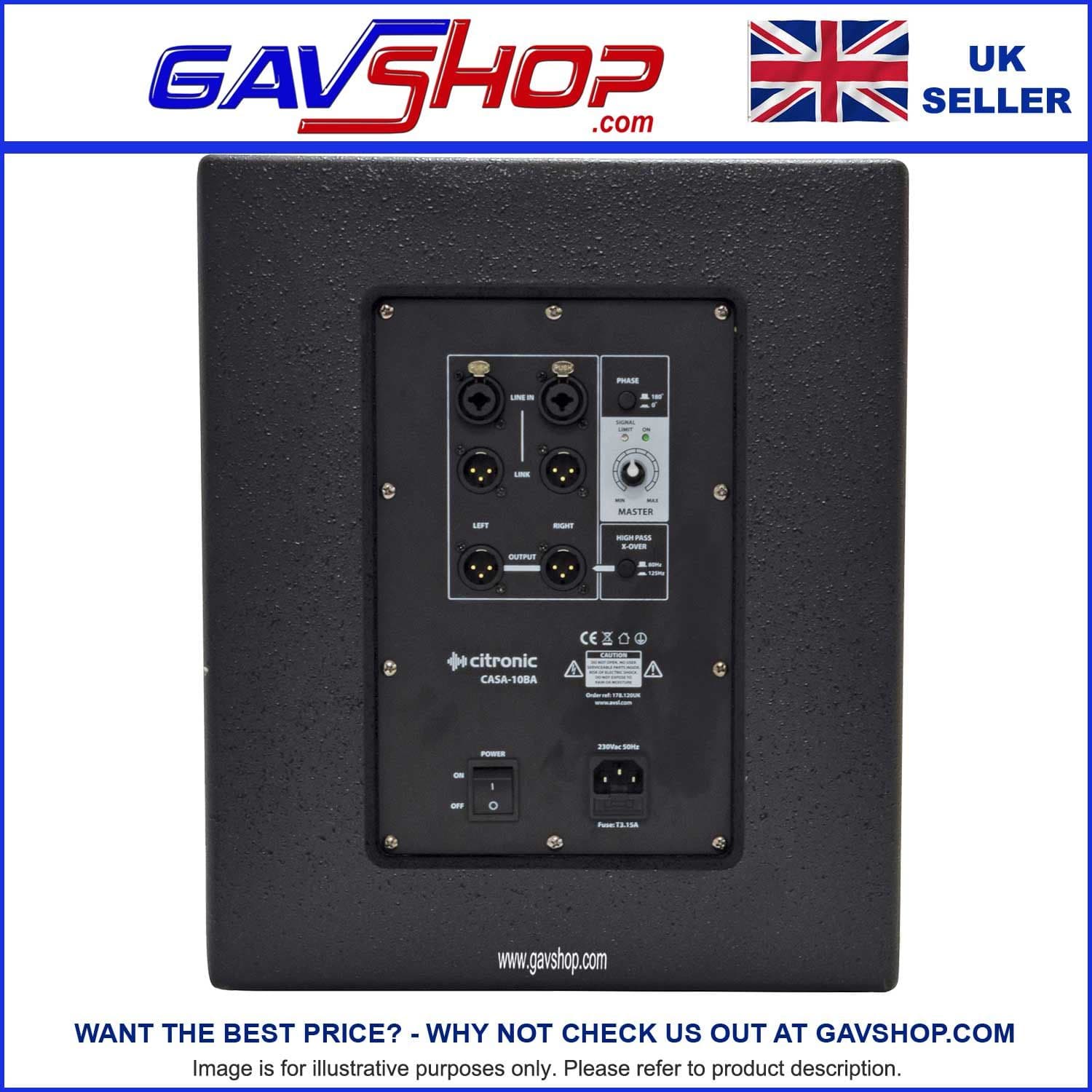

  • Line inputsL+R balanced XLR
  • Line outputsL+R balanced XLR & L+R link XLR
  • ControlsOutput level, phase switch, high pass x-over (output)

VERSION DETAILS

178.120UK 178.122UK 178.125UK 178.128UK
Sub driver 250mmØ (10") 300mmØ (12") 380mmØ (15") 450mm­­­Ø (18")
Voice coil 50mmØ (2") 62mmØ (2.5") 75mmØ (3") 75mmØ (3")
Output power : rms 300W 400W 500W 600W
Output power : max. 500W 700W 900W 1100W
Peak output 1000W 1400W 1800W 2200W
SPL max. 120.0dB 122.0dB 123.5dB 124.0dB
Frequency response 60 - 150Hz 55 - 150Hz 50 - 150Hz 45 - 150Hz
Dimensions 431 x 407 x 338mm 480 x 450 x 380mm 564 x 540 x 448mm 645 x 605 x 510mm
Weight 16.23kg 18.86kg 25.42kg 34.00kg

Specifications

Product Code
178.120UK
Weight
16.23kg

Delivery & Returns

Citronic CASA Active Sub Cabinets Speakers in sizes 10" 12" 15" 18"

Item in Stock

Product Code 178.120UK

The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system
