Bare wire mains tester, no need to fit a plug for testing!

All appliances must be disconnected from the building’s fixed wiring!

The Safe Test Block is an easy and convenient way of connecting flexible leads to the AC mains temporarily. Used by manufacturers and PAT testers, the Quick Test Connector Block can be used on fixed appliances or portable appliances without a plug.

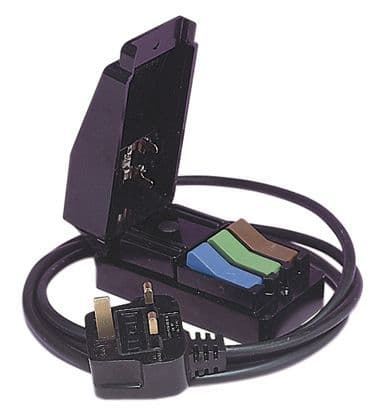

Constructed from tough impact resistant, flame retardant plastic. The lid incorporates a fuse and switching device. When the lid is open the cable clips are isolated from the supply. When closed the power is connected. A glowing neon lamp is visible with the lid open or closed indicating when power is connected to the device.The Quicktest provides a quick and secure method of temporarily connecting 2 or 3 core bare ended flexible leads to the mains. Maximum 13 amp. Fitted with integral BASEC cable (5A) and moulded plug to BS1363/A.

Features

• Bench or wall mountable
• Supplied with 1.5m lead with UK plug
• Insulated L, N, E clips
• Tough plastic casing
• Current isolated when lid is lifted
• Simple lamp to indicate current
• Depth (mm): 120
• Height (mm): 55
• Width (mm): 160
• Product Dimensions (mm): 55x160x120
• Net weight (kg): 0.430
• Colour: Black
• Order Code: Y003A
