Product Description

Transistor Si-NPN Uni 50V 0.2A 0.3W - BC107B

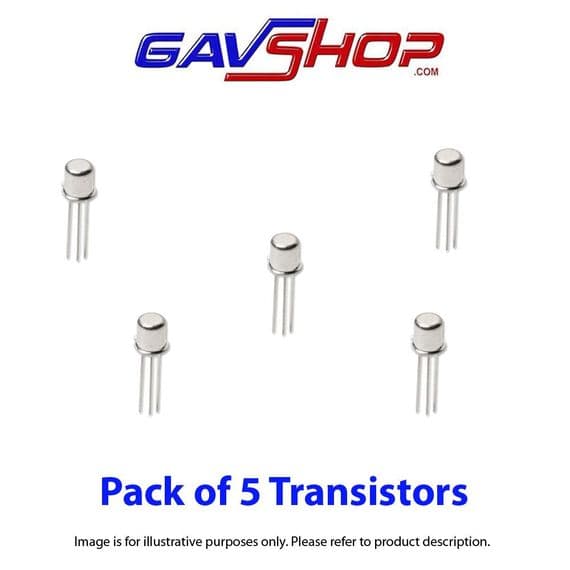

Sold as a pack of 5 transistors

The BC107B from Multicomp is a low power bipolar transistor in TO-18 metal can package. This NPN silicon planar epitaxial transistor is used for general purpose switching and amplification.

Collector emitter voltage (Vce) is 45V at IC = 2mA, IB = 0
DC collector current is 100mA
Power dissipation is 600mW at Ta = 25°C
Operating junction temperature range from -65°C to 200°C
Collector emitter saturation voltage is 600mV at IC = 100mA, IB = 5mA
DC current gain is 200 at IC = 2mA, VCE = 5V (minimum)
Collector to base voltage is 6V at IE = 10 µA, IC = 0
Minimum transition frequency is 150MHz at VCE = 5V, IC = 10mA, f = 100MHz
Small signal current gain is 240 minimum at f = 1KHz, IC = 2mA, VCE = 5V
GAVSHOP CODE: BC107B
GAVSHOP LOC: RK018/1

Applications

Signal Processing, Power Management, Portable Devices, Consumer Electronics, Industrial

Specifications

Product Code

BC107B - SC06645 - 9206779

Delivery & Returns

Transistor Si-NPN Uni 50V 0.2A 0.3W - BC107B

Name: Transistor Si-NPN Uni 50V 0.2A 0.3W - BC107B
SKU: BC107B - SC06645 - 9206779
Price: 2.00 GBP
Availability: InStock

Item in Stock

Product Code BC107B - SC06645 - 9206779

The BC107B from Multicomp is a low power bipolar transistor in TO-18 metal can package.
