Product Description

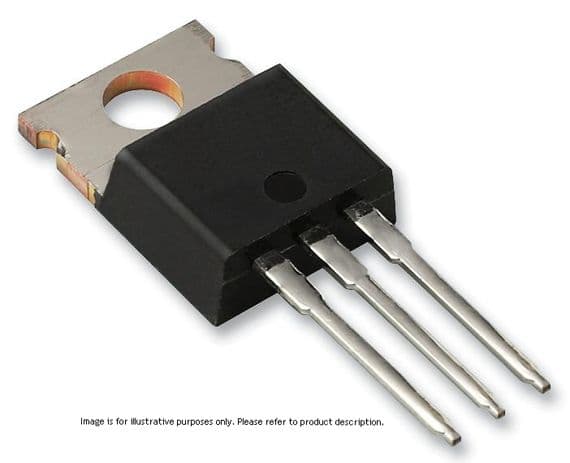

STMICROELECTRONICS Triac, 25A, 700V, TOP-3 - BTA26-700BRG

Please Note: Triacs are sold tested with none return or refund policy.

The BTA26-700BRG is a 25A insulated standard TRIAC suitable for general purpose mains power AC switching. The Snubberless version is especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500Vrms). It can be used as an ON/OFF or phase angle function in various applications.

High current TRIAC
Low thermal resistance with clip bonding
High commutation (4 quadrant) or very high commutation (3 quadrant) capability
UL1557 certified
Peak Repetitive Off State Voltage: 700V
On State RMS Current: 25A
Gate Trigger Voltage Max: 1.5V
Peak Non Repetitive Surge Current: 250A
Holding Current Max: 80mA
No. of Pins: 3Pins
Operating Temperature Max: 125°C
Peak On State Voltage: 1.7V

Our Order Code: BTA26-700BRG
GAVSHOP LOC: COMP007

Specifications

Product Code

CP01 - BTA26-700BRG - SC07591 - COMP007

Weight

0.01kg

Delivery & Returns

TRIAC, 25A, 700V, TOP-3 BTA26-700BRG

Item in Stock

Product Code CP01 - BTA26-700BRG - SC07591 - COMP007

TRIAC, 25A, 700V, TOP-3 BTA26-700BRG. Commonly used in Sound to Light Units and Dimmer Packs. Replacement part used in the Soundlab Dimmer Pack, Other Sound to Light Controllers.
